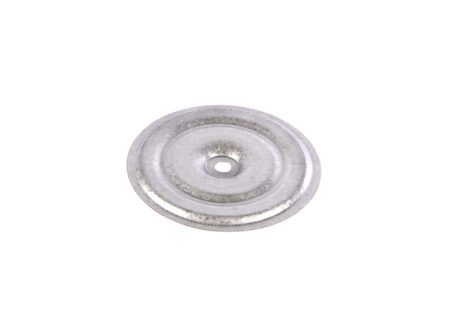

3″ RECESSED METAL INSULATION PLATE

TRUFAST® Metal Insulation Plates are used to mechanically attach insulation, coverboards and BUR base sheets to the substrate. The plate’s circular design and reinforcing ribs provide exceptional strength to resist wind uplift forces. TRUFAST Metal Insulation Plates are made of Galvalume coated steel for excellent corrosion protection that meet the requirements fo ASTM D 6294, FM 4470 and DIN 50018. TRUFAST 3" Recessed Metal Insulation Plate has a deep cener recess to accmmodate hex headed fasteners and prevent screw heads from snagging mops and penetrationg into membrante. It is used to atache roof insulation to the substrate and should only be used over compressible insulations.

CODE APPROVALS & LISTINGS
FM Global, Miami-Dade County, State of Florida-FL#4500, CE European Technical Approval ETA 9/0375
MATERIAL
Steel
COATING
AZ-50 Galvalume

Use with TRUFSAT #12DP, #12DPH, #14HD, #14 HD Bi-Metal Stainless Steel or #15 HD Fasteners.

TRUFAST® Metal Insulation Plates are used to mechanically attach insulation, coverboards and BUR base sheets to the substrate. The plate’s circular design and reinforcing ribs provide exceptional strength to resist wind uplift forces. TRUFAST Metal Insulation Plates are made of Galvalume coated steel for excellent corrosion protection that meet the requirements fo ASTM D 6294, FM 4470 and DIN 50018. TRUFAST 3" Recessed Metal Insulation Plate has a deep cener recess to accmmodate hex headed fasteners and prevent screw heads from snagging mops and penetrationg into membrante. It is used to atache roof insulation to the substrate and should only be used over compressible insulations.

Size & TypePart No.Pkg Qty/Type Wgt/Pkg Qty/Skid (M)
3" Recessed Insulation PlateMPR-30001000 / Bucket 37 lbs. 40
Note: MP and MPB Plates are for use with Phillips Truss Head Fasteners only. MPR Plate is recessed and can be used with either Hex Head or Phillips Truss Head Fasteners
